Overview

Create a high-level Domain Model for the design project requirements in any drawing tool of your choice.

The diagram should only contain nodes for each Domain entity and possibly entity attributes but no behaviors (aka methods). Make sure to include appropriate relationships with multiplicity indicators, inheritance relationships (if any) that you can discern from the problem description. The relationships should be labeled with tags that explain the relationship in a domain context.

Be sure to review the domain models lecture if you need a refresher.

Example

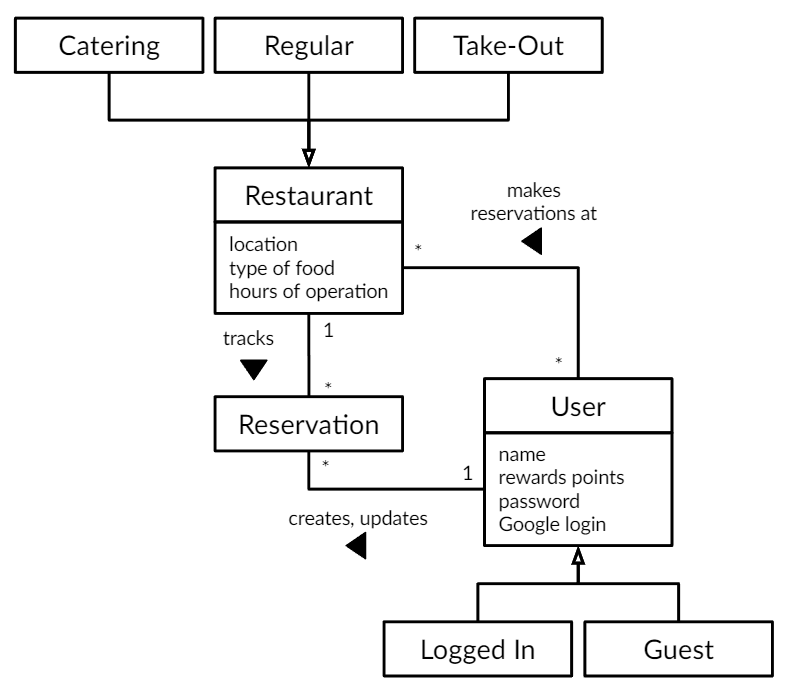

An example Domain model.

Deliverables

Submit a single PDF or image file to the R1 - Domain Model Dropbox. This will be an individual submission.
